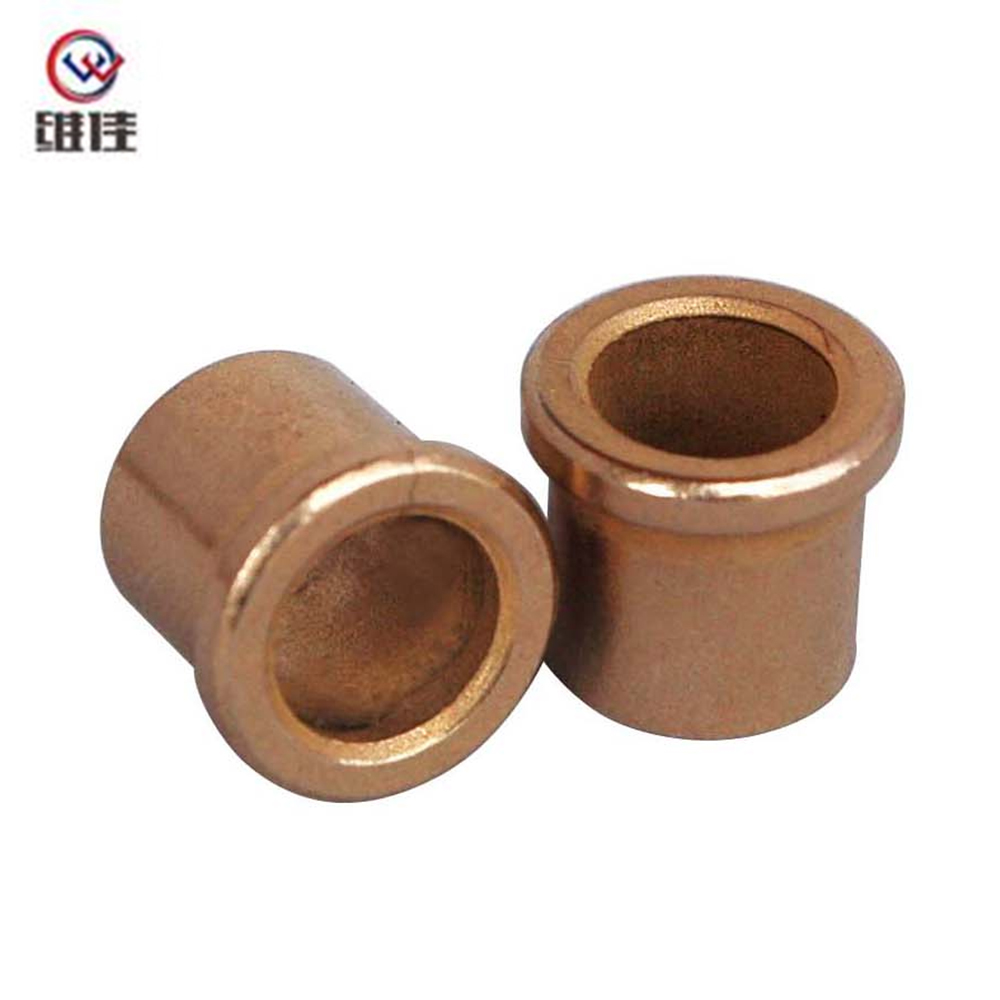

Sint B50 Powdered Metallurgy Oil-Impregnated Bronze Flange Bushing

Why Is the Sint B50 Oil Impregnated Bronze Flange Bushing Becoming an Ideal Self-Lubricating Solution for Modern Machinery?

As industrial equipment continues to evolve toward higher efficiency, longer service life, and lower maintenance costs, seemingly small components such as bushings play a critical role in determining the overall reliability of mechanical systems. Whether in automated production lines, automotive assemblies, household appliances, or industrial machinery, rotating and sliding components depend on reliable support and lubrication systems.

Traditional metal bushings often require regular lubrication, experience wear over time, and may struggle to maintain long-term operational stability. Driven by these challenges, the Sint B50 Oil Impregnated Bronze Flange Bushing has become an increasingly popular choice among equipment manufacturers and end users worldwide.

So, what makes the B50 oil-impregnated sintered bronze flange bushing stand out from other self-lubricating bearing solutions? Why is it gaining widespread recognition across multiple industries?

What Is a Sint B50 Oil Impregnated Bronze Flange Bushing?

The Sint B50 Oil Impregnated Bronze Flange Bushing is a self-lubricating plain bearing manufactured through powder metallurgy technology.

Its production process begins with carefully blended copper-based alloy powders, which are compacted under high pressure and then sintered at elevated temperatures. Unlike conventionally machined bronze bushings, sintered bronze bushings create a network of uniformly distributed microscopic pores throughout the material.

These pores are not defects; they are the key to the bushing's self-lubricating capability.

After sintering, the bushings undergo a vacuum oil impregnation process that allows lubricant to penetrate deeply into the porous structure. During operation, friction and temperature cause the oil to migrate to the bearing surface, forming a lubricating film. When the equipment stops and cools down, excess oil is reabsorbed into the pores, creating a continuous lubrication cycle.

This unique design enables the bushing to operate for extended periods with minimal maintenance.

Why Does the Flange Design Improve Equipment Reliability?

Many engineers prefer flange bushings over standard cylindrical bushings when designing mechanical systems.

The flange section provides not only radial support but also the ability to accommodate certain axial loads, helping to position and secure components within the assembly.

For applications subjected to both radial and axial forces, conventional bushings often require additional retaining rings, washers, or positioning components. A flange bushing integrates these functions into a single component.

This design approach reduces the number of parts, simplifies assembly procedures, improves installation accuracy, and lowers maintenance complexity.

In compact equipment where reliability and space efficiency are critical, flange bushings offer significant engineering advantages.

How Does the B50 Oil-Impregnated Sintered Bronze Bushing Achieve Self-Lubrication?

One of the most frequently asked questions about this product is how it can operate for long periods without frequent lubrication.

The answer lies in its porous structure.

The interconnected pores formed during the sintering process act as microscopic oil reservoirs distributed throughout the material. These reservoirs store lubricant and release it when needed.

As the machine operates, friction generates heat, causing oil to migrate to the bearing surface. This creates a lubricating film that reduces direct metal-to-metal contact, lowering friction and minimizing wear.

When the equipment stops and temperatures decrease, capillary action draws the lubricant back into the porous structure.

This repeating process allows the bushing to maintain long-term lubrication and stable performance.

Why Are More Manufacturers Choosing B50 Sintered Bronze Flange Bushings?

As manufacturing industries place greater emphasis on total lifecycle costs rather than initial purchase prices alone, B50 oil-impregnated bronze flange bushings offer several compelling advantages.

Lower Maintenance Costs

Because the bushings continuously provide their own lubrication, the need for routine maintenance and manual relubrication is significantly reduced. This is particularly beneficial in applications where access is limited or maintenance interruptions are costly.

Excellent Wear Resistance

Sintered bronze materials possess good mechanical strength and wear resistance. Under properly designed operating conditions, these bushings can deliver long service life and stable performance.

Reduced Operating Noise

The consistent lubricating film helps minimize friction and vibration, resulting in smoother and quieter operation. This makes the product especially suitable for appliances, office equipment, and medical devices where noise reduction is important.

High Dimensional Consistency

Powder metallurgy manufacturing provides excellent repeatability and dimensional accuracy, making the bushings ideal for high-volume production and automated assembly processes.

Cost-Effective Mass Production

Compared with traditional machining methods, powder metallurgy offers better material utilization and production efficiency, helping manufacturers reduce overall production costs.

Which Industries Benefit Most from Sint B50 Oil Impregnated Bronze Flange Bushings?

As demand for reliability and maintenance-free operation continues to increase, B50 oil-impregnated bronze flange bushings are being adopted across a wide range of industries.

In the automotive sector, these self-lubricating bushings are commonly integrated into seat adjustment mechanisms, windshield wiper drive systems, electric sunroof assemblies, and cooling fan motors. These applications often involve continuous movement and limited maintenance access, making self-lubricating technology highly advantageous.

Household appliances also represent a major application area. Washing machine motors must withstand frequent operating cycles, air-conditioning fans require quiet and reliable long-term performance, and vacuum cleaners place significant demands on bearing durability and lubrication. The self-lubricating properties of B50 bushings help ensure smooth and dependable operation in these environments.

Beyond automotive and appliance applications, industrial automation equipment is another important market. Conveyor systems, packaging machinery, textile equipment, and printing machines frequently operate for extended periods. By incorporating oil-impregnated flange bushings, manufacturers can reduce maintenance downtime while improving operational efficiency and reliability.

With the rapid development of smart manufacturing, robotic joints, compact gear drive systems, and automated actuators are increasingly utilizing powder metallurgy self-lubricating bushings. Compared with conventional bearing solutions, these bushings provide stable support, reduced noise, and lower overall maintenance costs.

What Factors Determine the Quality of a B50 Sintered Bronze Bushing?

Although many oil-impregnated bushings are available on the market, product quality can vary significantly between manufacturers.

Raw Material Quality

High-purity copper and alloy powders contribute to a more uniform microstructure, resulting in improved wear resistance and mechanical strength.

Sintering Process Control

Sintering temperature, atmosphere, and processing parameters directly influence pore structure, material density, and overall performance.

Porosity Optimization

Porosity must be carefully controlled. Insufficient porosity limits oil storage capacity, while excessive porosity may reduce load-bearing strength. Achieving the right balance is critical.

Oil Impregnation and Precision Machining

Effective vacuum oil impregnation ensures consistent lubricant distribution, while precision machining guarantees dimensional accuracy and reliable assembly performance.

How Does Jiande Weijia Technology Co., Ltd. Deliver Reliable Sintered Bushing Solutions?

Jiande Weijia Technology Co., Ltd., established in 2001, is a high-tech enterprise specializing in powder metallurgy sintering and precision machining. The company integrates research and development, manufacturing, and sales into a comprehensive production system.

The company primarily produces powder metallurgy bushings, self-lubricating bearings, and a variety of precision components that serve industries such as automotive manufacturing, machinery, household appliances, power tools, and industrial automation.

Supported by a modern production facility covering 13,039 square meters, Jiande Weijia Technology Co., Ltd. operates advanced manufacturing and testing equipment, enabling complete process control from powder preparation and compaction to sintering, precision machining, and final inspection.

Drawing on extensive industry experience, the company continuously optimizes production technologies to improve dimensional accuracy, manufacturing efficiency, wear resistance, and product consistency, meeting the demanding requirements of customers worldwide.

Its experienced engineering and R&D teams are capable of providing OEM and ODM services based on customer drawings, samples, and application requirements, delivering customized bushing solutions tailored to specific operating conditions.

To ensure product quality and reliability, the company strictly follows internationally recognized quality management standards and has obtained ISO 9001:2015 and IATF 16949:2016 certifications.

What Is the Future Outlook for B50 Oil-Impregnated Bronze Flange Bushings?

As industrial automation, renewable energy systems, and intelligent manufacturing technologies continue to expand, demand for high-performance self-lubricating components is expected to grow steadily.

Future mechanical systems will increasingly prioritize energy efficiency, reliability, and reduced maintenance requirements. Sintered bronze bushings that minimize lubrication needs, lower friction losses, and improve equipment longevity will play an increasingly important role.

At the same time, ongoing advancements in powder metallurgy technology are expected to further enhance load capacity, wear resistance, dimensional precision, and service life.

From this perspective, the Sint B50 Oil Impregnated Bronze Flange Bushing is far more than a simple mechanical component. It is a key enabling technology that supports the efficient and reliable operation of modern industrial equipment.

FAQ

Does a Sint B50 Oil Impregnated Bronze Flange Bushing require regular lubrication?

Under normal operating conditions, no additional lubrication is required. The lubricant stored within the porous structure continuously provides self-lubrication throughout the product's service life.

Can B50 sintered bronze flange bushings be used in high-load applications?

They are suitable for medium-load and certain higher-load applications. Final suitability depends on operating speed, temperature, load conditions, and system design.

What advantages does a flange bushing offer compared with a standard bushing?

A flange bushing can support both radial and certain axial loads while providing positioning functionality, reducing the need for additional components.

Are customized dimensions and materials available?

Yes. Jiande Weijia Technology Co., Ltd. offers OEM and ODM manufacturing services based on customer drawings, samples, and technical specifications.

How can the quality of a sintered bronze bushing be evaluated?

Key factors include raw material purity, porosity control, oil impregnation quality, dimensional accuracy, and the manufacturer's quality management system. Suppliers certified to ISO 9001 and IATF 16949 generally provide more consistent and reliable products.
